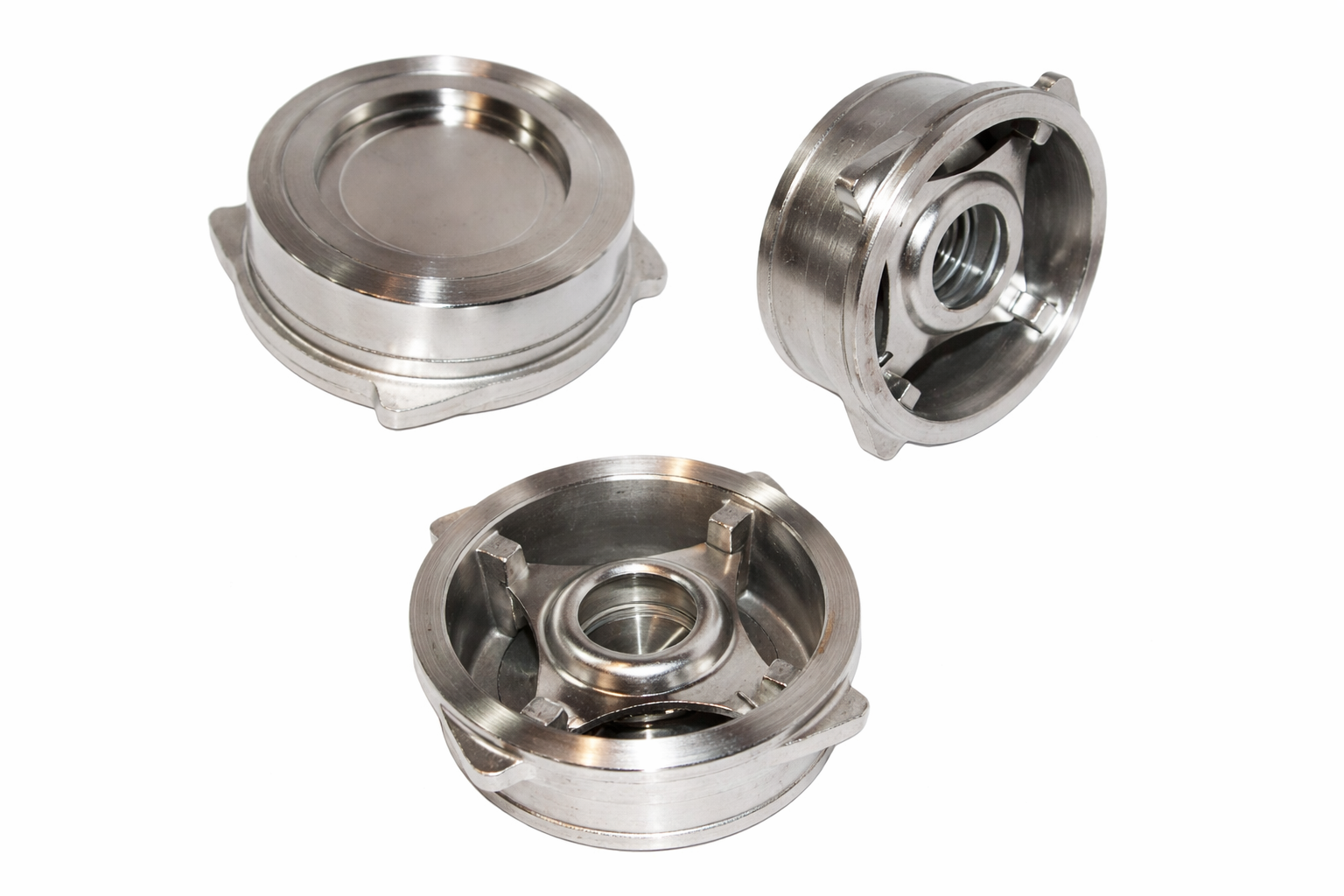

Disc Check Valve Non Slam
Size Range: 1/2″ to 8″
Body: CF8/CF8M
Disc: S.S. 304/S.S. 316
Disc Seat: Metal to Metal/PTFE Standard
Spring: Standard
Max. Operating Pressure: PN – 40
Max. Operating Temperature: Up to 300°C
| Size | 1/2″-8″ DN15-DN200 |
| Pressure Class | “150, 300, 600, 900” | PN10-PN160 |
| End Connection | Wafer, Lug |
| Body Material | WCB, LCB, CF8, CF8M, CF3, CF3M, A890 4A, and A890 5A |
| Spring Material | 316, Inconel x750, Inconel 718, etc |
| Seat Material | F6a, STL6, 304, 316, Hastelloy, Monel, etc |
| Stem Material | A182 F6a, 410, 420, 304, 316, 17-4PH, F11, etc |
| Design Standard | API594, API 6D, ASME B16.34 |
| Face-to-Face Standard | API 594, API 6D, and ASME B16.10 |
| Test Standard | API 598, API6D, DIN 3230 |
| Temperature Range | -50°C~650°C |
| Actuator Options | / |
